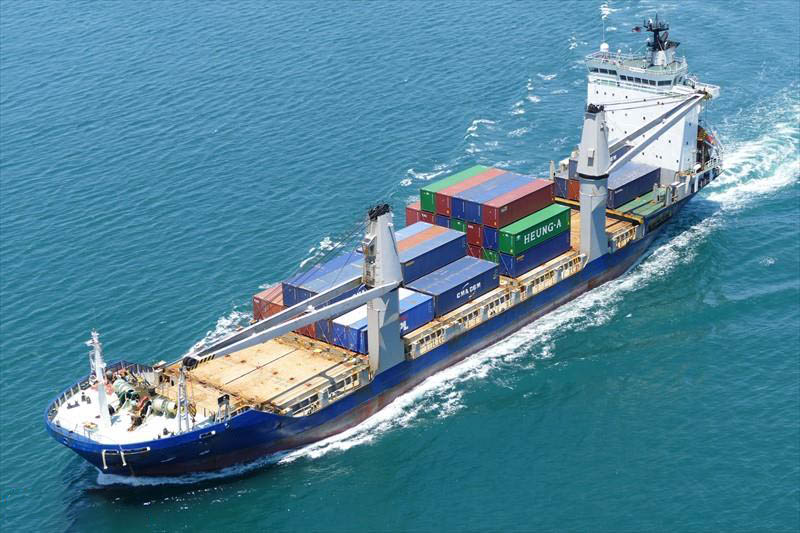

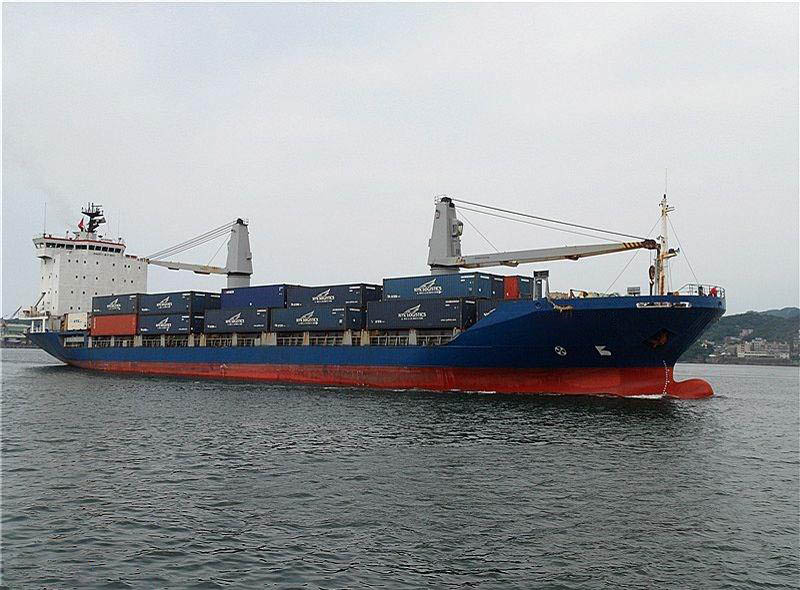

ABT 7,200DWT CONTAINER CARRIER FOR SALE
BLT JUN 1996 AT HAKATA SHIPBUILDING CO LTD., JAPAN
(SINGLE DECK / GEARED /BOX SHAPED HOLD)
=================
TYPE:CARRIER CARRIER / FITTED WITH CREAN)
FLAG:PANAMA
CLASS:NK
NEXT SS/DD:JUN 2021/JUN 2021
LBD:114.3 / 104.5 X 19.8 X 9.0 M
DWT:7,200 ON DRAFT 6.66M
GRT:5,658
NET:2,781
3 HOLD /3 HATCH
HOLD SIZE:
NO.1: 20.30 X 16.20 X 8.10 M
NO.2: 28.70 X 16.20 X 8.60 M
NO.3: 26.60 X 16.20 X 8.60(FWD)/ 8.10(AFT) M
HOLD: FULLY DOUBLE SKINNED AND BOX SHAPED
HATCH COVERS: PONTOON TYPE
CONTAINER CAPACITY: 602 TEU (IN HOLD 183 TEU / ON DECK 419 TEU)
STABILITY: 381 TEU/14 MTS HOMO ON SUMMER DRAFT
CRANE: KAWASAKI CRANES (PORT SIDE) 38 MT X 2 sets
TANK CAPACITY: IFO: 753 M3 MGO: 160 M3 FW: 115 M3 BW: 2,790 M3
M/E:AKASAKA 6UC45LA 7200PS@158RPM X 1
A/G:DAIHATSU 6DL-16 440KW
BOW THRUSTER FITTED (420KW)
SPEED/CONSUMPTION:
ABT 14.75KNOTS / ABT 20.5T/DAY BY 180CST
IFO:14.75 KN AT SUMMER DRAFT ON 20.5 MTS (180CST)
DELIVERY IN CHINA~JAPAN RANGE AS BASIS
|
